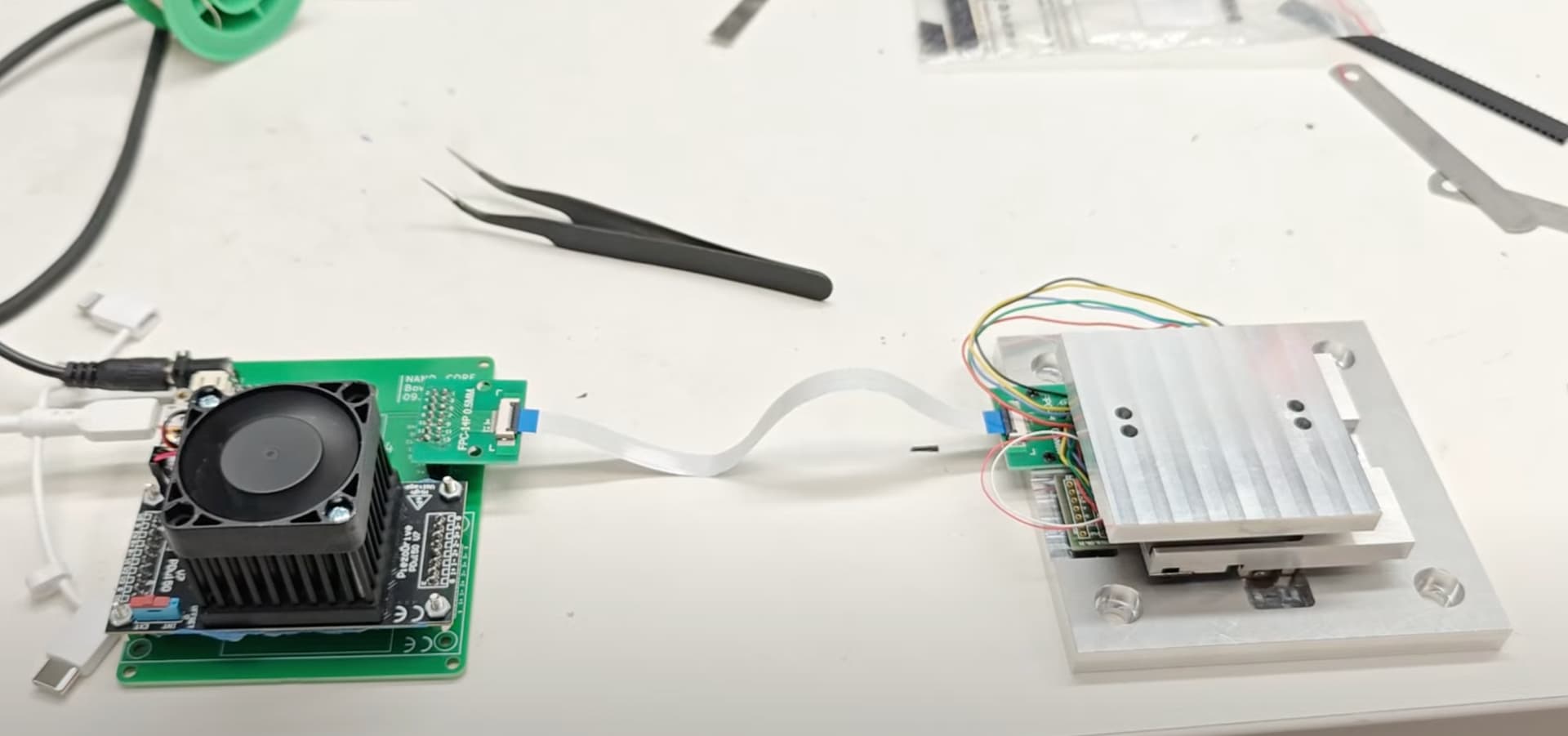

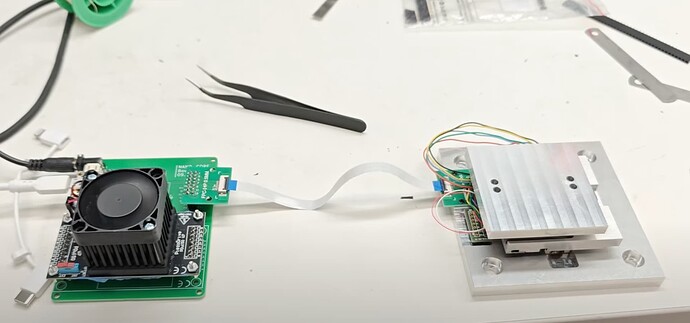

I was inspired by the XYZ nanopositioner built by @EdwinHwu‘s group and wanted to build one myself, but close the loop
Nanopositioner Details:
-
Independent X/Y control
-
Closed loop (using PID)
- uses relative positioning, so homing requires stalling instead of limit switches
-
500 nm resolution
-
Max speed is 3 mm/s
-
Small volume (8 cm x 8 cm x 3.1 cm)
-
Travel range of 25 mm
-
Uses piezoelectric actuator
- mounted on water jetted steel flexure
-
BOM costs ~$800
Background:
I needed precise positioning to raster scan samples for my scanning confocal microscopy. However, my budget was limited so I chose to make a positioner myself.
Next Steps:
As I finalize the design and code, I plan on open-sourcing my work (most likely through Github) and lower the cost of electronics to bring the overall price down to $500.
Would appreciate any feedback and would be interested in learning what performance specs and features would be most useful for people in this space.
For a demo video of resolution, check out my X: https://x.com/bwnzhng2003/status/1900252376201904129
